SensMax TAC-B EWP PoE Radar People Counting Sensor

SensMax TAC-B EWP is a PoE-powered indoor/outdoor radar sensor for real-time indoor people counting and outdoor pedestrian and bicycle counting. It uses contactless 60 GHz mmWave radar technology to detect movement, direction, speed and presence without video cameras or personal data collection.

The sensor supports both sidewall and overhead installation, making it suitable for entrances, corridors, retail areas, public buildings, smart buildings, pedestrian routes and bicycle paths. In wall mode, TAC-B EWP can classify moving objects as pedestrians or cyclists. In overhead mode, it can classify pedestrians as adults or children based on object height.

With PoE power and Ethernet data over one cable, Wi-Fi connectivity, MQTT/API integration, configurable counting lines and zones, Micro SD backup storage and built-in dry contact relay output, TAC-B EWP is designed for professional people counting, smart building automation and smart city projects.

Request a consultation

At a Glance

• PoE-powered radar sensor – power and Ethernet data through one cable.
• Indoor and outdoor use – IP68 enclosure for demanding indoor and outdoor installations.
• Sidewall or overhead installation – one sensor can be configured for side-view or top-down counting.
• Indoor people counting – real-time people counting for entrances, corridors, rooms and public areas.
• Outdoor pedestrian and bicycle counting – wall mode supports pedestrian/cyclist classification by speed.
• Adult and child classification – overhead mode can classify pedestrians by height.
• Bidirectional counting – configurable lines and zones support IN/OUT visitor flow analytics.
• Camera-free and privacy-safe – no video, no images and no personal identifiers.
• Real-time reporting – data delivery for dashboards, notifications and external systems.
• MQTT/API integration – suitable for smart buildings, BMS, IoT and Smart City platforms.
• Dry contact output – relay signal for automation, alerts and external devices.

People Counting Technology – 60 GHz mmWave Radar

SensMax TAC-B EWP uses 60 GHz mmWave radar instead of cameras. The sensor emits a scanning radio signal and receives reflections from moving objects. This allows the device to detect movement, direction, speed and position without filming visitors.

Because TAC-B EWP is camera-free, it does not record video, faces or images. The system collects anonymous radar data only, making it suitable for privacy-sensitive locations such as offices, public buildings, retail stores, museums, transport areas, parks and city infrastructure.

Radar detection also works in different light conditions, including darkness, glare and bright sunlight. It can continue detecting movement in challenging environments where video-based systems may be affected by lighting, smoke, fog or rain.

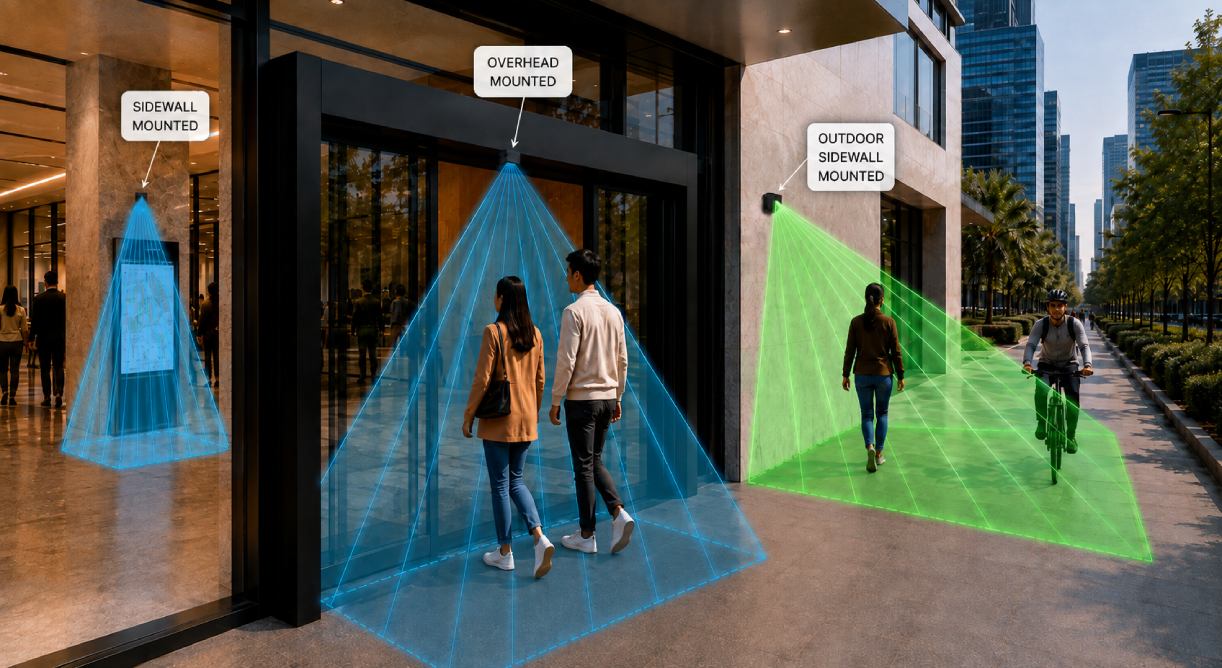

Sidewall, Overhead and Pole Installation

SensMax TAC-B EWP supports different mounting options depending on the project layout. The sensor can be installed on a sidewall, above the monitored area, or on a pole for outdoor pedestrian and bicycle counting. This flexibility makes it suitable for locations where standard ceiling-mounted people counters cannot be used.

Sidewall Mounting for Indoor People Counting

Sidewall mounting is used when the sensor is installed on a wall, column or side structure and monitors movement across the selected area. This option is useful for entrances, corridors, retail fronts, open-front stores and public passages where ceiling installation is not possible, not allowed, or where the ceiling is too high for overhead people counting.

In sidewall mounting, TAC-B EWP can count people moving in both directions using configurable counting lines and zones. This allows the sensor to measure IN/OUT visitor flow without installing a device directly above the passage.

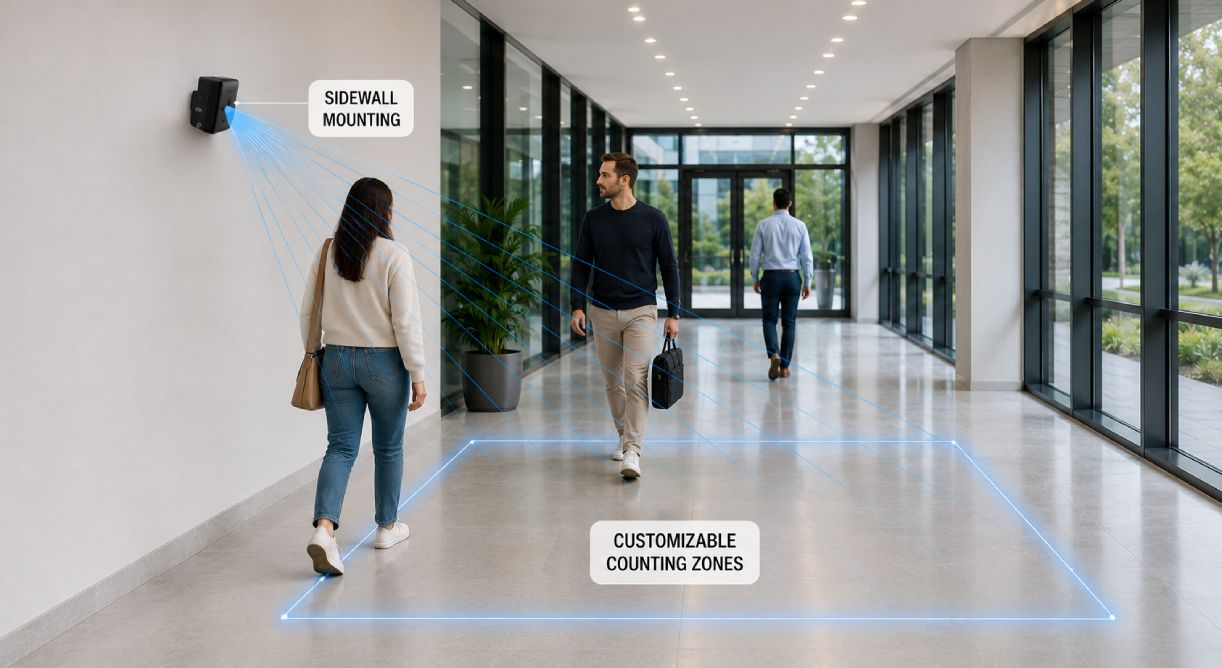

Sidewall-mounted TAC-B EWP radar sensor for real-time people counting in locations without a suitable ceiling installation point.

Overhead Mounting for Indoor People Counting and Adult/Child Classification

Overhead mounting is used when TAC-B EWP is installed above the monitored area and points downward. This option is suitable for indoor people counting in room entrances, washrooms, museums, libraries, public buildings, corridors and controlled indoor zones.

In overhead mounting, the sensor can count people from above and classify pedestrians as adults or children based on object height. This provides more detailed anonymous visitor statistics without using cameras or collecting personal data.

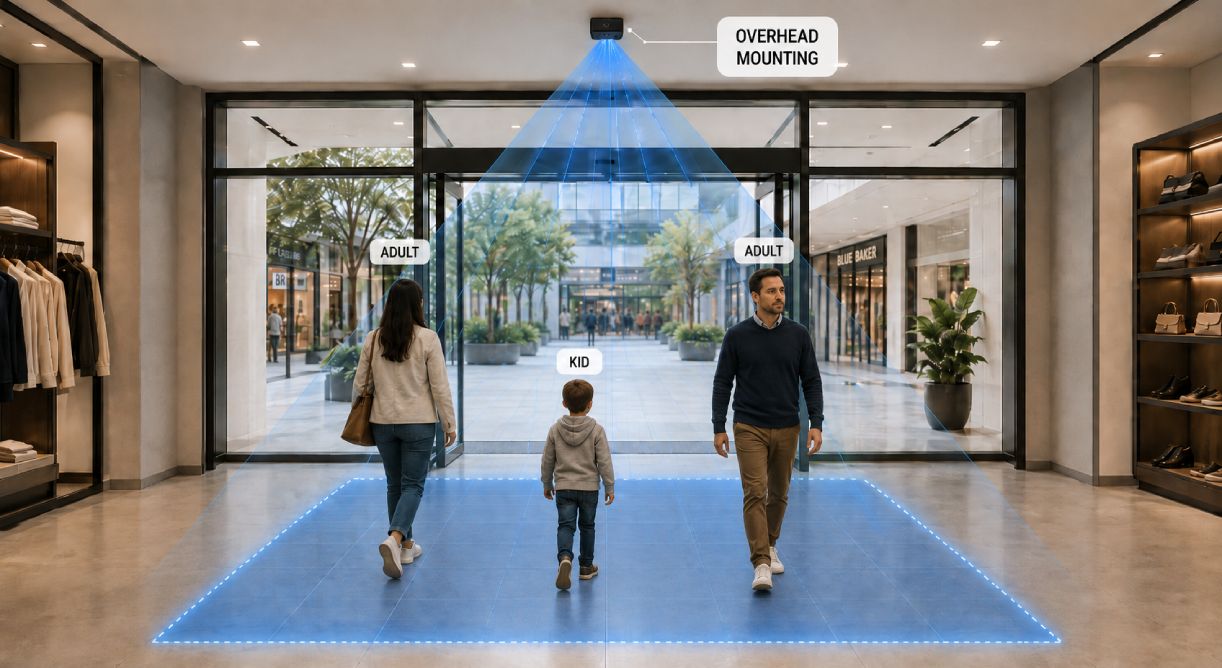

Overhead-mounted TAC-B EWP radar sensor for indoor people counting and anonymous adult/child classification.

Pole Mounting for Outdoor Pedestrian and Bicycle Counting

Pole mounting is used for outdoor locations where the sensor is installed on a pole, lamp post or similar vertical structure. This option is suitable for pedestrian routes, bicycle paths, parks, public spaces, smart city areas and shared-use outdoor corridors.

In pole mounting, TAC-B EWP works in sidewall mode and monitors movement across the path. It supports bidirectional counting and can classify moving objects as pedestrians or cyclists based on speed. The IP68 enclosure makes the sensor suitable for outdoor use in changing weather conditions.

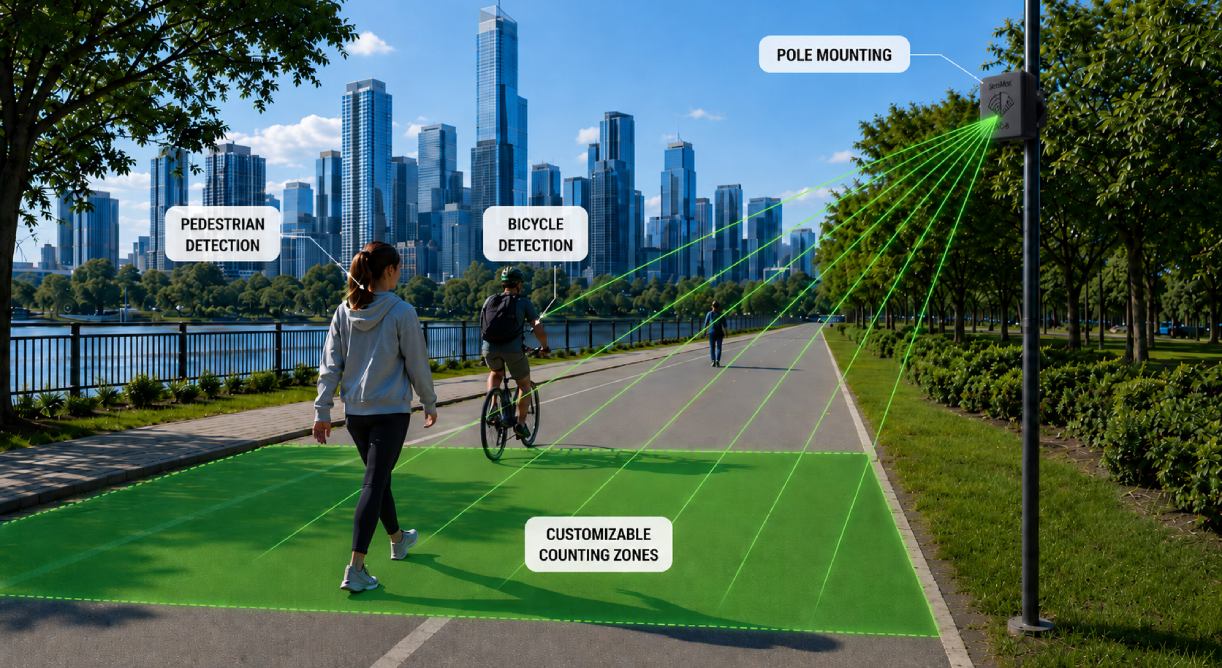

Pole-mounted TAC-B EWP radar sensor for outdoor pedestrian and bicycle counting in public spaces and Smart City projects.

Request a consultation

Real-Time Reporting and Integration

TAC-B EWP is designed for real-time people counting projects where data must be available immediately for dashboards, reporting tools, automation systems or third-party platforms.

The sensor supports wired Ethernet, PoE and Wi-Fi connectivity. PoE allows the device to receive power and transmit data through one Ethernet cable, reducing installation complexity and making the sensor suitable for professional smart building and infrastructure projects.

For system integration, TAC-B EWP supports MQTT and can be used with external dashboards, BMS platforms, IoT systems, Smart City software and other third-party environments. People counting data and system events can be used in reporting, monitoring and automation workflows.

If the network connection is temporarily unavailable, the sensor can continue storing data on the built-in Micro SD card and upload it later when the connection is restored.

Dry Contact Output for Automation

TAC-B EWP includes a built-in dry contact relay output. This allows the radar sensor to send a physical signal to external systems and devices when a selected event or count condition is reached.

The dry contact output makes TAC-B EWP useful not only for reporting, but also for automation projects where people counting data must trigger actions in other systems.

• trigger external alarms or signal devices;
• send a pulse to access control, gates or turnstile systems;
• activate lighting or ventilation based on movement or occupancy;
• send contact signals to BMS, PLC or automation controllers;
• support public-space alerts, service workflows and safety scenarios.

Built-In Speaker for Audio Notifications

In addition to dry contact output, TAC-B EWP has a built-in speaker for audio notifications. This feature can be used when the sensor should react with a sound message or warning after a configured event.

For example, audio notifications can support visitor guidance, access warnings, service alerts or public-area instructions. The speaker is an additional option for projects where counting and detection should be combined with local feedback.

Typical Applications

SensMax TAC-B EWP is suitable for indoor and outdoor projects where real-time, camera-free radar counting is required.

• Retail stores and shopping centres – indoor people counting, entrance analytics, zone counting and real-time visitor flow reporting.
• Offices and smart buildings – room occupancy, corridor traffic, space usage and building automation.
• Public buildings – camera-free visitor counting in libraries, museums, municipal buildings, washrooms and service areas.
• Pedestrian and bicycle routes – outdoor classification of pedestrians and cyclists in sidewall mode.
• Smart city projects – anonymous movement statistics for city infrastructure, parks, streets and shared-use paths.
• Family-oriented venues – overhead adult/child classification without cameras.
• Automation and security projects – dry contact output, audio notifications and MQTT integration with external systems.

Installation

TAC-B EWP can be installed on a wall or ceiling using the built-in metal bracket. The bracket rotates 180°, allowing the sensor to be positioned according to the selected operating mode.

For wall mode, the recommended installation height is 250–350 cm from the floor level. For overhead mode, the recommended installation height is 200–300 cm. Correct installation height is important for object classification, such as pedestrian/cyclist recognition in wall mode or adult/child recognition in overhead mode.

The sensor can be connected directly to a PoE router or PoE switch. If the existing network equipment does not support PoE, an external PoE injector can be used. For outdoor installations, waterproof connector covers should be used to protect the cable connections.

Choosing TAC-B EWP vs Other TAC-B Sensors

TAC-B EWP is the preferred model when a project requires PoE, wired Ethernet, IP68 indoor/outdoor protection, sidewall or overhead installation, dry contact automation, MQTT/API integration, adult/child classification or pedestrian/bicycle counting in one radar sensor.

For indoor retail, office and public-space projects where Wi-Fi is sufficient and PoE or dry contact output is not required, the standard SensMax TAC-B 3D-W can be a simpler option. For outdoor locations where mobile communication is required, the SensMax TAC-B 4G may be considered.

Technical Details

Package Contents

• SensMax TAC-B EWP radar sensor
• Ethernet cable, 5 m
• Set of mounting screws
• Waterproof cover for the RJ-45 connector
• Waterproof female connector for the relay terminal

The device has a built-in metal bracket for wall or ceiling installation. A PoE injector and additional pole bracket are optional accessories and are not included in the standard package.

FAQ – TAC-B EWP PoE Radar People Counting Sensor

• Does TAC-B EWP use a video camera?
  No. TAC-B EWP uses 60 GHz mmWave radar. It does not record video, images, faces or personal identifiers.
• Can TAC-B EWP be installed indoors and outdoors?
  Yes. The sensor is designed for indoor and outdoor use and has an IP68 enclosure for demanding weather conditions.
• Can the sensor be mounted on a wall and overhead?
  Yes. TAC-B EWP supports both sidewall and overhead installation. The operating mode is selected in the web interface.
• Can it count people in both directions?
  Yes. The sensor supports bidirectional IN/OUT counting using configurable counting lines and zones.
• Can TAC-B EWP count pedestrians and bicycles outdoors?
  Yes. In wall mode, TAC-B EWP can classify moving objects as pedestrians or cyclists based on speed.
• Can TAC-B EWP distinguish adults and children?
  Yes. In overhead mode, the sensor can classify pedestrians as adults or children based on object height.
• Does TAC-B EWP support PoE?
  Yes. The sensor supports PoE IEEE 802.3af, allowing power and Ethernet data through one cable.
• Does TAC-B EWP support MQTT and API integration?
  Yes. TAC-B EWP supports MQTT and API integration for smart building, IoT, BMS and Smart City platforms.
• Can TAC-B EWP trigger external systems?
  Yes. The built-in dry contact relay can send signals to external systems such as alarms, lights, gates, turnstiles, BMS or PLC controllers.
• What happens if the internet connection is lost?
  The sensor can save data to the built-in Micro SD card and upload it later when the network connection is restored.
