SensMax SensGuard MCP9808 Wireless Temperature Sensor

The SensGuard MCP9808 wireless temperature sensor is an ultra-compact battery-powered sensor for remote temperature monitoring in warehouses, cold storage rooms, supermarkets, pharmacies, HVAC systems, server rooms, museums, archives and other controlled environments.

The sensor measures ambient temperature from -30°C to +55°C with ±0.5°C accuracy and a 0.1°C measurement step. It is suitable for monitoring areas where a compact temperature-only sensor is enough and no external probe or humidity measurement is required.

Readings are measured every 5 minutes and sent wirelessly to a compatible SensGuard gateway, such as SensGuard TCP LR X2. The gateway forwards data to the SensGuard cloud monitoring platform, where users can view reports, monitor trends and receive alerts when temperature limits are exceeded.

SensGuard MCP9808 sends ambient temperature readings wirelessly to a SensGuard gateway and cloud monitoring portal.

At a Glance

• Wireless temperature sensor for remote ambient temperature monitoring.
• Temperature measurement range from -30°C to +55°C.
• ±0.5°C measurement accuracy across the full range.
• 0.1°C measurement step for clear temperature trend monitoring.
• Wireless 868 MHz communication to a compatible SensGuard gateway.
• Up to 150 m communication range in clear line-of-sight conditions.
• AES-128 encrypted data transmission between sensor and gateway.
• Built-in 3.7V lithium battery with up to 5 years battery life.
• Non-replaceable sealed battery for compact hermetic sensor design.
• IP68 enclosure for high water and dust resistance.
• Compact 55 × 25 × 12 mm body for discreet installation.

Request a consultation

How the MCP9808 Sensor Works

The MCP9808 sensor measures ambient temperature using an integrated digital temperature sensor element. The compact sensor body is installed directly in the area where temperature conditions must be monitored.

Every 5 minutes, the sensor records a temperature reading and sends it over an AES-128 encrypted 868 MHz radio channel to a compatible SensGuard gateway. The gateway then sends the data to the SensGuard cloud platform for reporting, alerts and historical analysis.

The device includes a network diagnostic button and status LED, so users can check whether the sensor is connected to the gateway and cloud system.

Ambient Temperature Monitoring

MCP9808 is suitable for locations where ambient temperature must be monitored without an external probe. The sensor is placed directly in the monitored area and records the surrounding air temperature.

For applications where the measurement point is inside a freezer, duct, tank or equipment housing while the sensor body must remain outside, a probe-based model such as SensGuard DS18B20 or SensGuard PT100 may be more suitable.

Installation

The sensor is designed for quick, non-destructive installation. It is mounted using high-bond industrial double-sided adhesive tape on smooth surfaces such as plastic, metal, glass or painted walls.

The sensor should be installed in the area where ambient temperature must be measured, while staying within wireless range of the SensGuard gateway. Avoid placing the device where it can be affected by direct heat sources, direct sunlight, water flow, ventilation outlets or other local conditions that do not represent the monitored area.

The sensor is shipped powered off to protect the built-in battery during storage and transport. To start operation, press and release the JOIN button and register the sensor in the SensGuard cloud portal using the connection wizard.

MCP9808 is used for ambient temperature monitoring in storage, refrigeration, HVAC, server rooms, museums and other controlled environments.

Request a consultation

Compatible Gateway and Cloud Monitoring

The MCP9808 sensor requires a compatible SensGuard gateway for online monitoring. The gateway receives wireless readings from the sensor and forwards them to the SensGuard cloud platform.

• SensGuard TCP LR X2 wireless gateway and data collector for SensGuard monitoring sensors.

In the cloud platform, users can review temperature history, configure thresholds, receive alerts and export monitoring reports. This supports daily supervision, quality control and audit documentation.

Typical Applications

SensGuard MCP9808 is suitable for wireless ambient temperature monitoring where a compact temperature-only sensor is required.

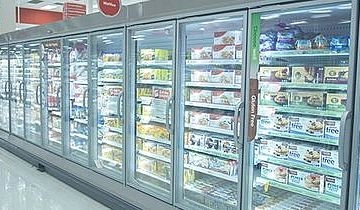

• Commercial refrigeration for supermarkets, grocery stores, display cases and cold rooms.
• Food storage and warehouses for monitoring temperature-sensitive stock and storage zones.
• Pharmacies and healthcare facilities for medicine storage temperature monitoring.
• HVAC systems and building automation for room, duct area and technical-zone temperature monitoring.
• Server rooms and data centers for localized temperature supervision around IT equipment.
• Museums, galleries and archives for protecting climate-sensitive exhibits and historical materials.
• Greenhouses and agriculture for monitoring growing conditions and protected spaces.
• Commercial buildings for monitoring technical rooms, storage spaces and utility areas.

Business Benefits

Wireless temperature monitoring helps organizations reduce manual checks and detect temperature changes before they cause product loss, equipment problems or damage to sensitive materials. MCP9808 provides a compact temperature-only monitoring point that is easy to install in existing facilities.

Cloud reporting and alerts help teams react faster, maintain temperature history and support internal quality control. The wireless design also makes it easier to add monitoring points without running signal cables to each sensor location.

• monitor ambient temperature with one compact wireless sensor;
• reduce manual temperature checks;
• receive alerts when thresholds are exceeded;
• keep historical reports for quality control and audit needs;
• protect food, medicine, equipment, exhibits and stored goods;
• add new monitoring points without running sensor cables to the gateway.

Example in Action

A supermarket installs SensGuard MCP9808 sensors in cold rooms, storage areas and technical rooms. The sensors monitor ambient temperature and send readings to the SensGuard gateway every 5 minutes.

When temperature moves outside the configured limits, the monitoring system alerts responsible staff. The store team can react quickly, check refrigeration equipment and reduce the risk of product loss.

Technical Details

FAQ SensGuard MCP9808 Sensor

• What does the MCP9808 sensor measure?
  It measures ambient temperature only. It does not measure humidity and does not use an external probe.
• What is the temperature measurement range?
  The sensor measures temperature from -30°C to +55°C.
• What is the measurement accuracy?
  The measurement accuracy is ±0.5°C across the full range.
• Which gateway is required?
  The sensor requires a compatible SensGuard gateway, such as SensGuard TCP LR X2.
• How often are measurements sent?
  The measurement interval is 5 minutes.
• Can the battery be replaced?
  No. MCP9808 uses a built-in non-replaceable 3.7V lithium battery. When the battery reaches the end of its service life, the sensor unit must be replaced and recycled.
• How long does the battery last?
  Battery life is up to 5 years at the default measurement interval.
• Is MCP9808 waterproof?
  The sensor has an IP68 enclosure for high water and dust resistance.
• How is the sensor mounted?
  The sensor is mounted using high-bond industrial double-sided adhesive tape on a smooth surface.

Ready to Get Started?

Need wireless ambient temperature monitoring for storage rooms, supermarkets, pharmacies, HVAC systems, server rooms, museums or food facilities? SensMax can help you choose the right MCP9808 sensor and SensGuard gateway configuration for your project.

Share your location type, required temperature range, number of monitoring points, distance to the gateway and reporting requirements, and we will help define the correct setup.
