SensMax TAC-B real-time people counting locator sensor

SensMax TAC-B real-time people counting locator sensor
  • Operation principle:
    Advanced mmWave radar technology
  • Internet connection :
    WiFi 2.4 GHz/WPA2-PSK/WPA2-ENTERPRISE
  • Control zone:
    HI-RES 6m range 120° viewing angle (35m²), LO-RES 14m range 120° viewing angle (200m²)
  • Control concept:
    Up to 5 user-defined independent lines and zones
  • GDPR/Privacy law:
    Anonymous people detection, 100% compliant, no filming
  • Enclosure :
    ABS plastic and IP68 outdoor case

Standalone people counting sensor with real-time data delivery to a server via WiFi connection. The sensor controlling multiple counting lines and zones within a detection area of 35 and 200 square meters. It can be used for both indoor and outdoor people counting. The SensMax TAC-B sensor supports popular IoT MQTT protocol and Telegram API. These features give rich opportunities for integration of TAC-B sensor to any of indoor or outdoor people counting projects.

Back to devices
Ask for price

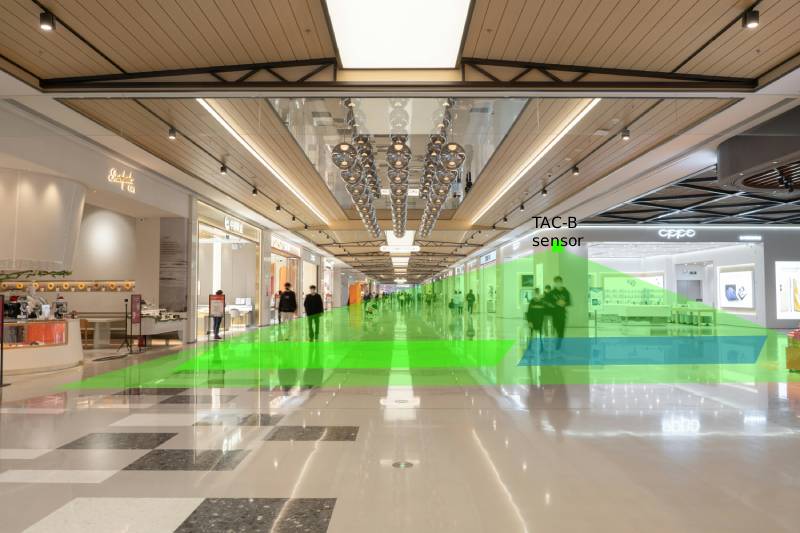

SensMax TAC-B people counting sensor using the mmWave radar technology for both indoor and outdoor people counting projects. The sensor can detect very fine motions in any light condition, even through rain, fog, or smoke.  SensMax TAC-B sensor supports up to 5 user-defined counting lines and zones. The sensor detects IN/OUT movement direction, the number of visitors inside zone, as well as occupancy time.  The sensor counting people in up to 6m range at 120° viewing angle (35m2) in high resolution and up to 14m range 120° viewing angle (200m2) in lower resolution. Sidewall mounting is fast and easy. It has more options for flexible installation for indoor and outdoor people counting projects.

SensMax TAC-B sensor delivers people counting data to online reporting tools using WiFi internet connection in real-time mode.  There is an option to connect the sensor to SensMax could reporting system and check ready-to-use reports, as well as build online real-time reports – visiting statistics, occupation of premises, queue detection per zone, and others. Telegram messenger API support allows getting notifications in real-time. The TAC-B sensor supports MQTT protocol, so it is possible to import people counting data directly to any 3rd party reporting system without connecting the sensor to the SensMax cloud services.

The TAC-B sensor is GDPR/Privacy law compliant and counting people without filming them. Feel free to request demo product for your project.

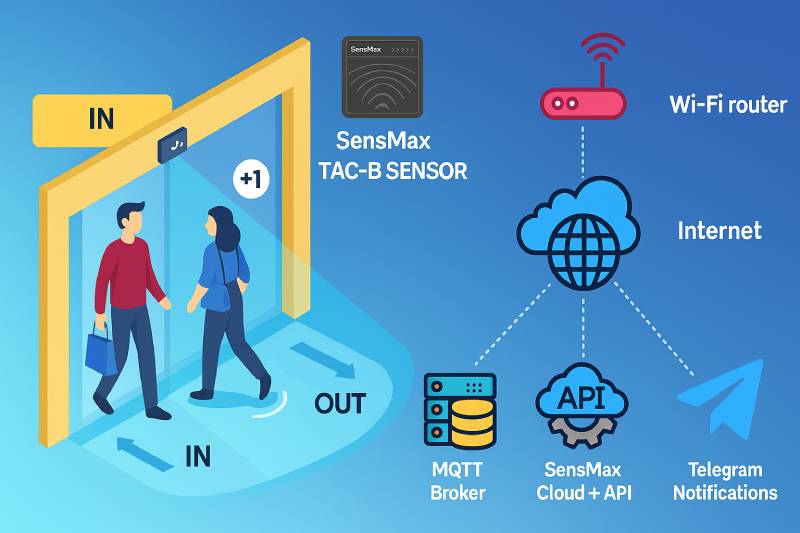

sensmax-mmwave-tacb-radar-people-counter-work-scheme

Application of SensMax TAC-B sensor

retail-store-people-counting-icong

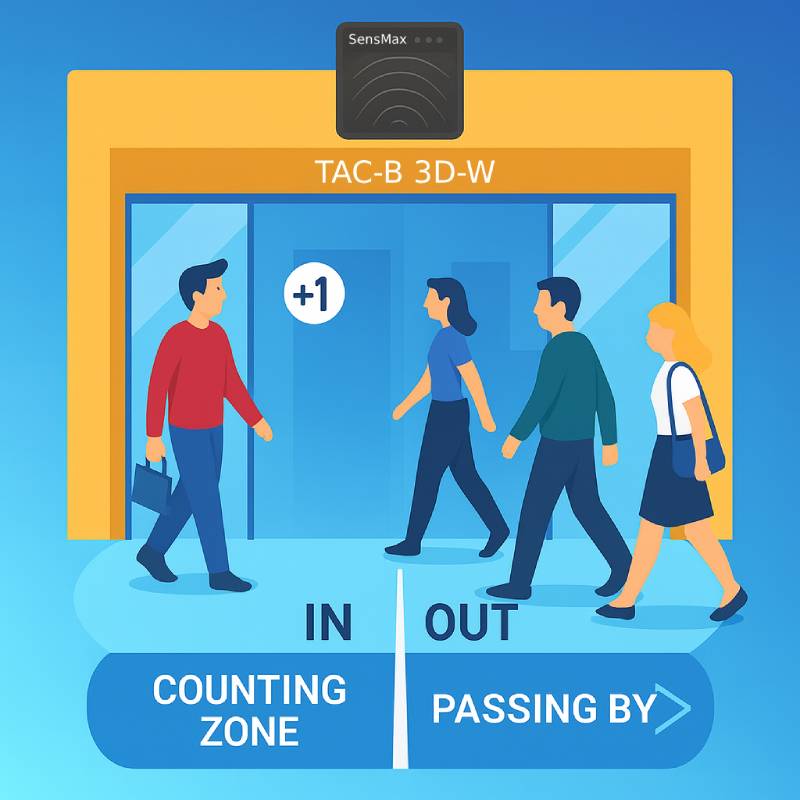

Retail stores using people counters for collecting visiting statistics for a better understanding of visitors’ behavior. It helps in planning marketing activities according to visiting trends, as well as controlling sales staff work effectiveness by checking conversion rates. Easy sidewall installation allows to draw multiple counting lines and detect both entering and passing by visitors.

shopping-mall-people-counting-icon

Shopping malls adjusting rent costs according to visiting rates, evaluating marketing activities effectiveness by tracking the number of attracted visitors, as well as planning staff work schedule. Some of them adjust heating and ventilation systems comparing to visitors statistics that help to save electricity costs. Real-time people counting and occupancy reports helping in controlling the number of visitors per premises and display automated messages on any internet connected screen.

office-people-counting-icong

Office buildings need people counting for tracking office space utilization, meeting room occupancy statistics, as well as adjusting heating and ventilation system work to reduce building service costs. This sensor supports MQTT data delivery protocol, so it can be integrated into any building management system and you can use it in any smart building scenario. Sidewall mounting and WiFi data delivery give you flexible installation options, i.e. on sidewall, backwall, angled overhead.

library-people-counting-icon

Libraries and museums getting government and project funds according to popularity. People counting system helping them in collecting visiting statistics in an automated way for funding purposes. As well as it is possible to track the advertisement effectiveness or popularity of various kinds of events. Easy and fast installation and wide detection area allow saving costs for the sensor installation and configuration. Easy mounting is convenient for temporary installation, as well.

washroom-people-counting-icong

Washrooms need to maintain clean and healthy environments. People counting system tracking visiting statistics and helping cleaning companies to optimize cleaning schedules according to occupancy. Automated notification triggers for visiting levels helping to automate business processes and reduce staff costs. The sensor is 100% private and detects visitors without filming. Realtime reporting help in automating occupancy management.

outdoor-people-counting-icon

Outdoor people counting in parks, walking trails, as well as city streets for tracking the number of people using particular routes. It helps in planning cleaning and maintenance schedules, understanding the popularity of events, as well as proving necessary funding amounts. The sensor can be placed in a robust plastic box together with a power bank for temporary installation at outdoor events. It stores data into internal memory or can deliver it online in realtime mode using any WiFi hotspot, i.e. shared internet connection from a mobile phone or GSM modem.

queue-people-counting-icong

Queue management for indoor and outdoor projects helping to maintain high quality and fast service for customers. It is useful for tracking social distance, the density of people traffic, queue detection, occupancy management per zone at any location either it will be a shopping mall or a bus stop. Easy installation and privacy compliant people detection without filming makes the sensor one of the best choices for queue management.



Technical parameters of SensMax TAC-B sensor:

Application People counting, Premises occupancy monitoring, Perimeter security motion detection, Queue management, Social distance monitoring, Outdoor people counting
People counting technology Advanced mmWave radar technology 77Ghz
People counting options Up to 5 user-defined counting lines and zones
Occupancy monitoring Per sensor zone, per group of sensors
Installation options  Sidewall mounting at height 2-2.5m
Case ABS plastic or IP65 discreet outdoor case
Counting accuracy Up to 99% detection of one person per 1 m2, and >93% for crowded areas with 3 persons per 1 m
Detecting area  HI-RES 6m range 120° viewing angle (35m2), LO-RES 14m range 120° viewing angle (200m2
GDPR/Privacy lawAnonymous people detection, 100% compliant, no filming
Notifications & Reporting Telegram messenger API support, MQTT protocol support, Email notifications, and online reporting if the sensor connected to my.sensmax.eu cloud reporting system
Internet connectionWiFi 2.4 GHz/WPA2-PSK/WPA2-ENTERPRISE
Storage & Backup  Micro SD card 16GB
Power  AC 220V to DC 12V/0.5A
Dimensions  80x80x35 mm



Download PDF documents

SensMax TAC-B sensor bookletDownload
SensMax TAC-B manual and datasheet Download
SensMax TAC-B application Download
SensMax Product catalogueDownload
