SensMax TCPIP TS data gateway for real-time sensors

SensMax TCPIP TS data gateway for real-time sensors
  • Communication range:
    LR - 150m, SLR - 800m
  • Internal memory :
    2000 recordings
  • Power supply:
    AC adaptor 5V or POE adaptor
  • Additional feature:
    Real-time data delivery

SensMax TCPIP TS gateway for statistics reading from real-time people counting sensors and customer survey buttons.

SensMax TCPIP LR TS 255 EUR  |  SensMax TCPIP SLR TS 275 EUR

Description of SensMax TCPIP TS gateway

SensMax TCPIP TS gateway is a device for reading statistics from real-time people counters and real-time customer survey buttons. It uploads statistical data from wireless sensors to SensMax online reporting portal in real-time using LAN/Internet connection.

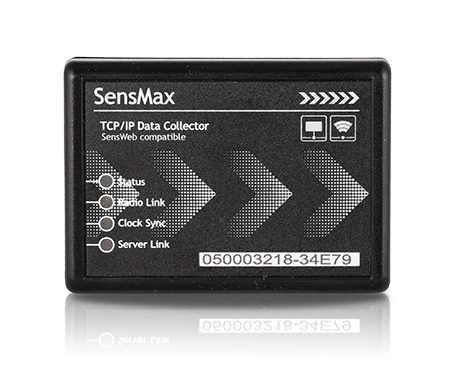

SensMax LAN gateway for real-time people counters and customer survey buttons



There are two modifications of the gateway: SensMax TCPIP LR TS, and SensMax TCPIP SLR TS with communication ranges of up to 150m and up to 800m. The gateway works with these sensors: SensMax S1, SensMax D3, and SensMax Loyalty Button. It is important to choose the same range sensors as gateway, for example, LR sensors with LR gateway.

SensMax TCPIP TS data gateway supports connection for up to 30 pcs of people counting sensors and customer survey buttons. It can read data from different devices simultaneously, for example, several people counting sensors and customer survey buttons. The gateway has a built-in memory for 2000 records for short-term backup which is shared across all connected sensors.




Benefits of SensMax TCPIP TS real-time gateway

Immediate updates –  the gateway delivers data to the server in real-time mode.

Easy setup – plug and play installation take some minutes.

Internal memory – the data gateway has built-in backup memory for 2000 records.

Long Range  – data reading from wireless sensors within 800m range.

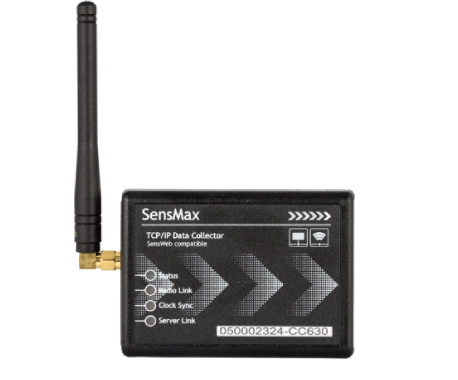

Long Range data gateway for wireless people counting sensors



Technical parameters of SensMax TCPIP TS real-time gateway

Application Real-time people counting in retail store, occupancy monitoring in shopping mall,  real-time people counting in office buildings, real-time people counting in washrooms, real-time occupancy monitoring in premises
Sensors supported

SensMax Pro D3 LR TS
SensMax Pro D3 SLR TS
SensMax Loyalty Button L3 LR TS
SensMax Loyalty Button L3 SLR TS

Communication ranges

SensMax TCPIP LR TS up to 150m
SensMax TCPIP SLR TS up to 800m

Qty of serviced devicesSensMax TCPIP LR TS 30pcs of sensors
SensMax TCPIP SLR TS 30 pcs of sensors

Internal memory

2000 records
Shared memory among sensors
Internet connection

LAN router, RJ45

Configuration port

USB

Radio frequency

SensMax TCPIP LR TS 868MHz
SensMax TCPIP SLR TS 868MHz

Power supplyAC adaptor 5V or POE adaptor
CaseABS plastic, black
Dimensions 90x66x28mm
