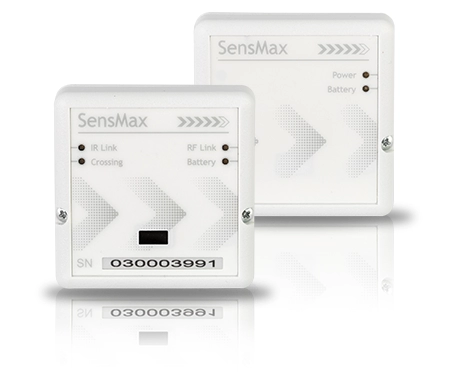

Wireless people countning sensor SensMax Pro S1

Wireless people countning sensor SensMax Pro S1
  • Operation principle:
    Infrared beam crossing
  • Movement direction finding:
    Unidirectional
  • Internal memory :
    25 days of hourly data
  • Power supply:
    AA batteries
  • Battery life:
    up to 2 years
  • Communication range:
    40-50 m

People counter SensMax Pro S1 designed for counting people in retail stores. People counting system helps to collect statistics about customers visiting stores and display it in various reports per hour, day, week, month and year. Retail people counters fit both a small retail store and multi-country retail chain. Connectivity range up to 50m.

Back to devices
ASK for price

Wireless people counting sensor SensMax Pro S1 designed for counting people in retail stores. The sensor is a wireless device that works from standard batteries up to 2 years. Installation of people counters is simple, and it takes some minutes only. Wireless people counters create invisible infrared ray and each visitor crossing counts. Visiting statistics stored into people counter internal memory that it is enough to save 25 days of hourly statistics for backup reasons. Data from people counters travels to a central database or online reporting cloud automatically via a LAN/Internet or 3G/Mobile Internet gateway. You can see statistics of customers and potential customers visiting stores in various ready to use reports per hour, day, week, month and year.



wireless people counters SensMax



SensMax Pro S1 people counting sensors have built-in radio module with connectivity range to the gateway up to 40-50m. Counting methodology is unidirectional using the formula: one crossing IN and one crossing OUT is equal to one visitor. People counting process and collection of statistics is fully automated. The sensor stores statistics into internal memory and sends it to the server every 20 minutes according to default settings. Retail people counters fit both small retail store and multi-country retail chain. Feel free to check demo login of our online reporting portal SensWeb or to download demo application SensMax EasyReport. Feel free to check software features comparison here.

people-counting-system-benefit-3.png Wireless setup – very easy wireless installation of wireless people counter sensors without any special cabling works.

people-counting-system-benefit-5.png Internal memory – people counter sensor has built backup memory for 25 days of hourly statistics.

people-counting-system-benefit-4.png Long battery life – wireless people counter working on batteries for up to 2 years.

people-counting-system-benefit-1.png Automatic operation – retail traffic counters operate in automatic way, no staff involvement needed during data collection and forwarding to HQ.






SensMax Pro S1 retail people counter sensor
Operation principle  Infrared beam crossing
Movement direction finding Unidirectional
Communication range  40-50 m
Radio module frequency  2.4 GHz
Internal memory  25 days of hourly data
Enclosure  Black or White ABS Plastic
Power supply  AA batteries
Battery lifetime  Up to 2 years
Data collection

Automatic data collector SensMax TCPIP

Automatic data collector SensMax 3G

Dimensions  67x67x25mm
Counting accuracy  95% 2m, >2m -1%/m
Passage width  Optimal 1m - 5m, maximum - 9m
Infrared ray angle  Two beams, 6°
Fixture  Double-sided adhesive tape or mounting bracket
Tamper protection  Sound alarm and report into software
