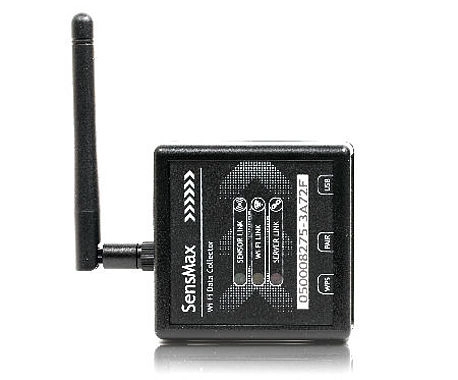

SensMax WiFi LongRange data gateway for wireless people counters and customer survey buttons

SensMax WiFi LongRange data gateway for wireless people counters and customer survey buttons
  • Communication range:
    up to 150m
  • Internal memory :
    250 days of hourly data
  • Internet connection :
    2.4 GHz/WPA2-PSK
  • Power supply:
    5V external power supply
  • Qty of serviced devices :
    SensMax Pro S1 LR x 60 pcs; SensMax Pro D3 LR x 30 pcs; SensMax Loyalty Button L3 LR x 30pcs

WiFi gateway for statistics reading from wireless people counting sensors and customer survey buttons. Connectivity range up to 150m. The gateway accumulates information from sensors and delivers it to a central database via WiFi internet connection.

Back to devices
ASK for price

SensMax WiFi LongRange data gateway reading statistical information from wireless people counting sensors and customer survey buttons and forwarding it to a central database via WiFi Internet connection. The gateway uploading information to the server every 20 minutes. It can serve up to 30 wireless sensors in a range of up to 150m and has internal memory for storing up to 250 days of hourly data. This memory is shared between all sensors, an example if you have 5 sensors connected, then the backup will be for 50 days of hourly data per sensor.

sensmax wifi data gateway for customer survey buttons and wireless people counters

SensMax WiFi Long Range data gateway can serve various sensors at one time. In example, it is possible to connect customer survey buttons SensMax L3 LR as well as wireless people counting sensors SensMax S1 LR and SensMax D3 LR. The data gateway has special watchdog chipset that prevents device hang-up in case of any electricity failures.

Download SensMax WiFi Long Range data gateway datasheet here.

people-counting-system-benefit-2.png Hang-ups protection – data gateway has a built-in chipset that protects the device from hang-up when electricity failures happen.

people-counting-system-benefit-5.png Internal memory – it has an internal memory of 250 days of hourly statistics for backup purposes.

people-counting-system-benefit-1.png Automatic operation – data gateway downloads statistical information from wireless sensors and delivers it to the central database every 20 minutes.

people-counting-system-benefit-4.png Long range – data gateway read statistical data from wireless sensors in a range up to 150m.

people-counting-system-benefit-3.png Easy setup – plug and play device with easy WiFi connectivity setup.

Description

SensMax Wi-Fi LR Data Collector

Communication distance to sensors

Up to 150m

Wi-Fi internet connection

2.4 GHz/WPA2-PSK

Data protocol

24 hour array / 1 hour step in reports

Data memory

250 days

Working frequency

868 MHz

Power supply

5V external power supply

Dimensions

66x56x28mm

Enclosure

ABS plastic, black

Supported sensors

SensMax S1 LR people counting sensor x 60pcs
SensMax D3 LR people counting sensor x 30pcs
SensMax L3 LR Loyalty Button x 30 pcs
