Devices

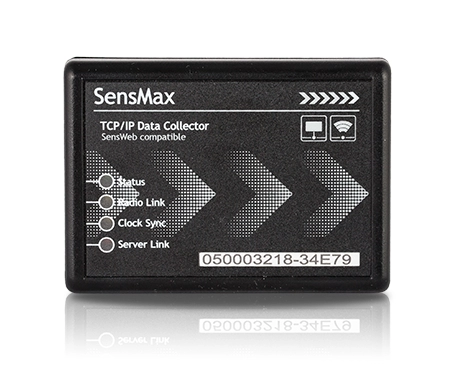

SensMax TCPIP LongRange automatic data gateway for wireless people counting sensors and loyalty buttons

SensMax TCPIP LongRange automatic data gateway for wireless people counting sensors and loyalty buttons
  • Communication range:
    up to 150m
  • Qty of serviced devices :
    60pcs of SensMax Pro S1 LR sensors or 30pcs of SensMax Pro D3 LR sensors or SensMax Loyalty Button L3 LR 30pcs
  • Internal memory :
    250 days of hourly data
  • LAN connection:
    standard LAN wire RJ45
  • Power supply:
    AC adapter 5V or PoE

Data gateway for information downloading from wireless people counting sensors. It uses a LAN/Internet connection to a local router for data delivery to a central database. Connectivity range is up to 150m.

Back to devices
ASK for price

SensMax TCPIP Long Range automatic data gateway has a powerful radio module that can reach wireless people counting sensors and loyalty buttons within a range of 150m. The data gateway reads information from wireless sensors and forwards it to a central database using LAN/Internet router. Standard RJ45 LAN cable used for connection to wired or wi-fi routers. The data gateway is getting data from wireless sensors every 20 minutes. You can change this setting according to your needs. The data gateway has a built-in memory for backup of 250 days of hourly data, shared among all served sensors. So, one sensor can have 250 days of backup, but 10 sensors will get 25 backup days each.



Long range data gateway for people counting sensors



SensMax TCPIP Long Range data gateway serving up to 60 pcs one-direction people counters, up to 30 pcs two-direction people counters or up to 30 customer survey buttons. You can connect a mix of devices to one data gateway, i.e., 10 pcs one-direction sensors, 3 pcs bi-direction sensors and 17 pcs loyalty buttons, and it will work correctly. The data gateway has a built-in watchdog that helps to protect the device from any hangups if any electricity failures happen. SensMax TCPIP Long Range data gateway is a reliable device for installation in network of objects.

people-counting-system-benefit-2.png Hang-ups protection – built-in watchdog prevents device hangup in case of any electricity failures.

people-counting-system-benefit-5.png Internal memory – shared memory for data backup from wireless people counters for 250 days of hourly statistics.

people-counting-system-benefit-1.png Automatic operation – 24/7 automatic data reading from people counting sensors and its forwarding to a central database.

people-counting-system-benefit-4.png Long range – data gateway can read data from wireless sensors within extended connectivity range for up to 150m.

people-counting-system-benefit-3.png Easy setup – simple plug and play installation.





Long Range data gateway for wireless people counting sensors

SensMax TCPIP Long Range automatic data gateway
Devices supported

SensMax Pro S1 LR people counting sensor

SensMax Pro D3 LR wireless bidirectional people counter

SensMax Loyalty Button L3 LR for customer satisfaction survey

Communication ranges Up to 150m
Qty of serviced devices 60 pcs of SensMax Pro S1 LR sensors or 30pcs of SensMax Pro D3 LR sensors or SensMax Loyalty Button L3 LR 30pcs
Internal memory 250 days of hourly data, shared memory amon sensors
LAN connection RJ45
Configuration port USB
Radio frequency 868Mhz for Europe/915Mhz for the USA
Power supply AC adapter 5V or POE
Dimensions 90x66x28mm
Enclosure АВS Plastic, black
