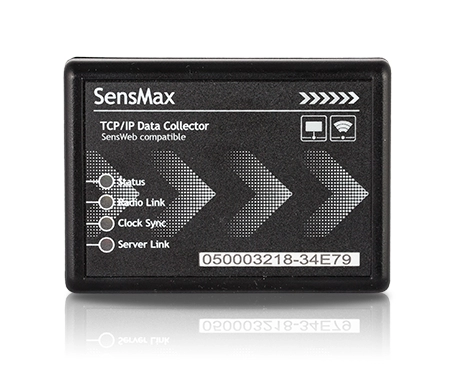

SensMax TCPIP automatic data gateway for wireless people counting sensors and customer survey buttons

SensMax TCPIP automatic data gateway for wireless people counting sensors and customer survey buttons
  • Communication range:
    up to 50m
  • Qty of serviced devices :
    10pcs of SensMax Pro S1 sensors or 5pcs of SensMax Pro D3 sensors or SensMax Loyalty Button L3 10pcs
  • Internal memory :
    250 days of hourly data
  • Internet connection :
    standard LAN wire RJ45
  • Power supply:
    AC adapter 5V or PoE

Data gateway for information delivery from wireless people counting sensors and customer survey buttons to a central database via LAN/Internet connection. Connectivity range is up to 50m.

Back to devices
ASK for price

SensMax TCPIP automatic data gateway is a device for data downloading from wireless sensors and its forwarding to a central database using LAN/Internet connection. It has RJ45 port for connection to standard or wi-fi routers using LAN cable. The data gateway connects sensors every 20 minutes to read statistics from them. Connectivity range for this type of device is up to 50m. It has a built-in memory for 250 days backup of hourly data. This memory shared among all served sensors, and it means that 10 sensors can store there 25 days each.



Automatic data gateway for wireless people counters



SensMax TCPIP data gateway can serve up to 10 pcs unidirectional people counters, up to 5 pcs bi-directional people counters or up to 10 customer survey buttons. Mixed devices mode supported, i.e., data gateway can serve 3pcs unidirectional people counters, 2 pcs bidirectional ones and 1 pcs customer survey button at the same time. The data gateway has a built-in watchdog for hang-up protection if any electricity failures happen.

people-counting-system-benefit-4.png Hang-ups protection – data gateway has a built-in watchdog that prevents device hangup in case of any electricity failures.

people-counting-system-benefit-5.png Internal memory – it has shared memory among people counting sensors to keep a total of 250 days of hourly statistics.

people-counting-system-benefit-1.png Automatic operation – data gateway reads information from wireless sensors and forwards it to the central database automatically.

people-counting-system-benefit-3.png Easy setup – plug and play device with easy installation.





Data gateway for wireless people counting sensors

SensMax TCPIP automatic data gateway
Devices supported

SensMax Pro S1 retail people counter sensors

SensMax Pro D3 wireless bidirectional people counting sensors

SensMax Loyalty Button L3 for customer surveys

Communication ranges Up to 50m
Qty of serviced devices 10pcs of SensMax Pro S1 sensors or 5pcs of SensMax Pro D3 sensors or SensMax Loyalty Button L3 10pcs
Internal memory 250 days of hourly data, shared memory among sensors
LAN connection RJ45
Configuration port USB
Radio frequency 2.4Ghz
Power supply AC adapter 5V or POE
Dimensions 90x66x28mm
Enclosure АВS Plastic, black
