Real-time wireless bidirectional people counter SensMax Pro D3 LongRange TS

Real-time wireless bidirectional people counter SensMax Pro D3 LongRange TS
  • Operation principle:
    Infrared beam crossing
  • Movement direction finding:
    two directions IN and OUT
  • Measurement period :
    5-minutes time spans in graphic reports, 1-second time span exporting data in raw format
  • Battery life:
    up to 1 year
  • Internal memory :
    1000 records
  • Communication range:
    up to 150m
  • Additional feature:
    immediate real-time data delivery to a server

Wireless people counter with real-time data delivery to a server. Bidirectional counting algorithm can detect visitor movement direction IN and OUT. This type of people counters shows data in reports per 5-minute time spans and per-second if exporting data in raw format. Connectivity range up to 150m.

Back to devices
ASK for price

Bidirectional people counter SensMax Pro D3 LongRange TS designed for projects where it is needed to count people in real-time mode.

It is a wireless device, so installation takes some minutes only.

This people counter device has bidirectional counting algorithm that can detect visitor movement direction IN or OUT.

Statistical data from wireless people counter delivered to a server in real-time mode.

This feature is useful if you need to detect how many visitors are in a room or premises at this time.

You can see statistical data in real-time occupancy reports as well as in statistical report per 5-minutes time spans.

There is an option to export per-second statistics in a raw data format from SensWeb cloud reporting portal using API.

Real-time people counters with immediate data delivery to the server



SensMax Pro D3 LongRange TS is a battery powered wireless people counter. Battery life is up to 1 year.

The sensor has internal memory for backing-up 2000 visitor records. Real-time people counter delivering data to the central database using a data gateway.

There are two types of data gateways LAN/Internet or WiFi/Internet as well as two types of reporting systems – cloud reporting or locally installed application. Details here.



Benefits of the real-time people counters

people-counting-system-benefit-5.pngReal-time people counting – it takes seconds to update a database in a real-time mode when people counter detect visitor.

people-counting-system-benefit-2.png Movement direction detection – real-time people counter can detect incoming and outgoing visitors.

people-counting-system-benefit-3.pngWireless setup – wireless and straightforward installation of real-time people counting sensors.

people-counting-system-benefit-1.pngInternal memory – bidirectional people counter has built-in memory for backup 1000 visitor records.

people-counting-system-benefit-4.png Advanced reporting – real-time data update in reports within 5-minutes time spans and per 1-second in raw data format.






Technical parameters of the real-time people counting sensor

SensMax Pro D3 LongRange TS real-time people counting sensor
Operation principle Infrared beam crossing
Movement direction finding Bi-directional
Internal memory 1000 records
Communication range Up to 150 m
Radio module frequency 868 MHz
Enclosure Black or white ABS Plastic
Power supply AA batteries
Battery lifetime Up to 1 year
Data collection Real-time data gateway SensMax TCPIP LR TS
Real-time data gateway SensMax WiFi LR TS
Dimensions 67x67x25mm
Counting accuracy 95% 2m, >2m -1%/m
Passage width Optimal 1m - 5m, maximum - 9m
Infrared ray angle Three beams, 6°
Fixture Double-sided adhesive tape or mounting bracket
Tamper protection Sound alarm and report in software







This device appears in those solutions:

Get more possibilities for your business
People counting system for shopping malls and smart buildings
People counting system for shopping malls and smart buildings
solution details
People counting system for retail stores
People counting system for retail stores
solution details
Real-time people counting with online reporting
Real-time people counting with online reporting
solution details
People counting system for toilets
People counting system for toilets
solution details
People counting system for museums and libraries
People counting system for museums and libraries
solution details
People counting in meeting rooms
People counting in meeting rooms
solution details

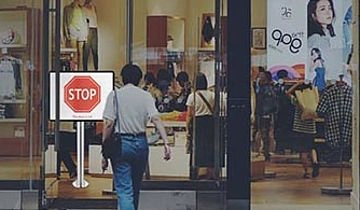

Go Stop report
Go Stop report
solution details

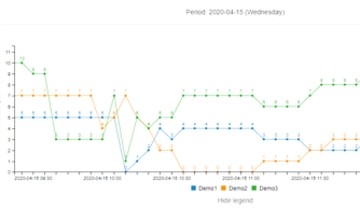

Occupancy report
Occupancy report
solution details
First-last intersection report
First-last intersection report
solution details

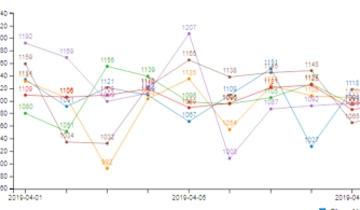

Visitors count report (line chart)
